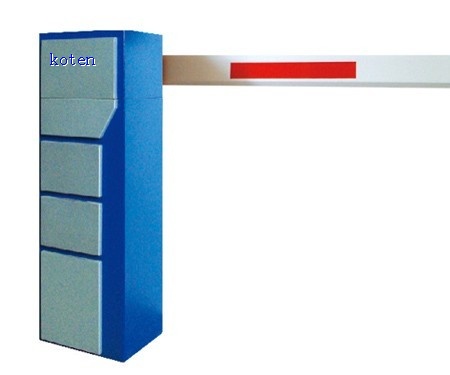

Boom Barrier Gate

Features description:

D009 is developed based on D004, with extraordinary appearance, decorative design at front.

1. Applying cast iron and AC motor integration, it can be controlled easily and reliable, and it is with low noise.

2. The housing is made from cold-rolled sheet finished by unique coating technique, which is good in corrosion resistance.

3. With trebled self-lock position limitation function, it prevent people lift arm by hand.

4. It has options of IR sensor or vehicle loop detector for preventing cars from being knocked by arm, with several control modes like conservation priority, time protection, barrier open in emergency etc.

5. With anti-jamming of thunder and static, high temperature resistance and wide range voltage/current design, it is adaptable in extreme environment.

6. Good operating space and debugging way:  it is easy debugged by two small dial switches.

7. The barrier arm can be easily taken apart.

8. It has been adjusted to optimal movement and balance state. No need debugging at site. It works after power on.

9. The whole set is made by mould and with lot sizing design, cost performance is very high.



Technical Parameters:

Working Power: AC220V, 150W

Arm (boom) Rising and dropping time: 3.75-6s (optional)

Working temperature: -20cels---+85cels

Arm (boom) length: 1-6m (optional)

Working Humidity: 5%-95%

Housing size: 340X280X1025mm
