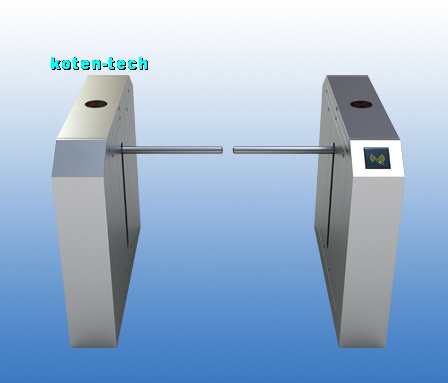

Drop Arm Turnstile

Features: 1. Fault detection and alarm functions, easy to use and maintenance 2. The running status can be programmed and controlled with the built-in keyboard on the main board 3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset) 4. Anti-breakthrough function. The gate is locked automatically until opening signal received 5. Synchronization functions (for dual gate equipments) 6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically 7. Gate can be set as normally open or normally closed 8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed) 9. Direction can be set as single-direction or bi-direction 10. LED direction indicator 11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements 12. Alarm function, in case of illegal intrusion and reverse intrusion, etc. 13. Counter function (optional) 14. Support infrared photocell for anti-pinch and reset function Drop Arm Turnstile Technical Data: 1) Length of the standard arm: 490mm; optional range: 250-550mm 2) Weight: 90kg 3) Material of the case: Chinese standard (304, 1.5mm) stainless steel, perforated with laser 4) Power voltage: AC220±10% V, 50HZ 5) Driving motor: DC Motor(24V) 6) Input interface: the relay switch signal or 12V level signal or 12V pulse width > 100ms 12V pulse signal, driving current > 10mA 7) Normal service life: 4 million times 8) LED Indicator Light: 2 9) Card-reading Window: the entire upper cover is toughened with 10mm cranberry ground glass, elegant and luxurious 10) Access port: 4 11) Passing speed: 30-40 persons/minute 12) The leading time for the gate opening and closing: 1 second 13) The time needed for going into the state of passing after powered on: 3 seconds 14) Restoring time after fault occurs: 10 seconds 15) Working environment: indoor/outdoor (with shelter); Temperature: -10°C---50°C Relative Humidity: ≤90%, no condensation Peripherals options: 1. Electronic counter 2. Access control system 3. E-ticketing system 4. Time attendance system 5. Coin selector
