Flap Barrier Gate

Flap Barrier Gate

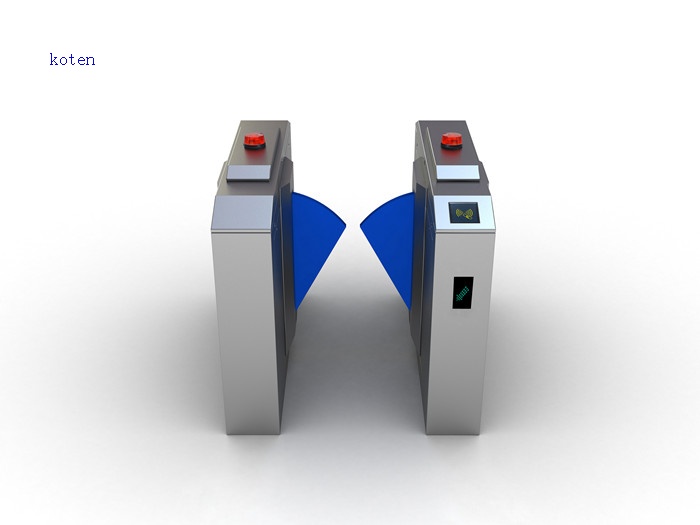

Product name : Flap Barrier Gate
Item : KT303
Details :

Function and characteristics:

1. With function of self-examine and alarm, it is convenient for maintenance and use.

2. Being able to program running status by the small keyboard in the main board

3. Preventing pedestrians from being nipped and from hurt

4. Sound alarm function including the illegal in and the tail

5. Doors are automatically locked till opening signal is received.
6. Doors synchronization (adjustable)
7. Automatically reset function: It will automatically lock if the pedestrian has not pass through the channel in the pre-set time after the opening. The passing time is adjustable from 1-60sec by client.

8. Automatically open the gate when power off and automatically close when power on
9. Several card readers are attachable, relay out signal can be received
10. One direction or bi-direction is optional.

11. It can be directly controlled and managed by remote control.

12. Many working models which can be set by press the small buttons on the Control Board:

a. Bi-directional card reading for entry and exit

b. Card reading for one direction and another direction is forbade

c. Card reading for one direction and another direction for free passing

d. Gate open and close by IR sensor detection one way or two way

13. Silent running with no noise

14. Anti-nip doubly by mechanical device and IR sensors

15. Gate close when pedestrian has passed the first IR sensor behind flap door

16. Alarm sounds when burst into the lane without card reading or invalid card reading

17. Can be set with/without memory of valid signal input, e.g. with memory function, card reading 3times, 3pedestrians can pass.

18. LED status indicator


Peripherals options:

1. Electronic counter

2. Access control system

3. E-ticketing system

4. Time attendance system

5. Exit button

6. Remote controller
……

Standard technical parameters
Framework material: SUS304 stainless steel (standard)

Lane width: 550-600mm

Net Weight: 75-130Kg/unit

Power supply: AC220/110V 50/60Hz

Driving electromotor: DC24V 30W
Input interface:
Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms, driving current: >=10mA

Normal life-span: 3million times

Communication interface: RS485 standard, distance<=1200metres

IR sensors: 3(standard)-10pairs can be mounted
Transit speed: 30-40 persons/min
Time for opening or closing: 1s
Starting time after power on: 3s

Automatic reset time after fault: 10s

Working environment: indoor, outdoor (with a tent over)
Temperature:
-15—— 60

Relative humidity: ≤90% No condensation
