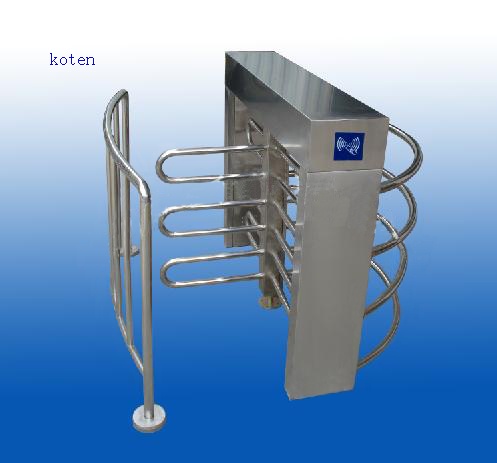

Half High Turnstile

Specifications:

† Framework: 304(standard)/202/316 Grade Stainless Steel/Iron

† Shell’ size: 1400*1500*1000mm (Standard)

† Finish: Brushed surface (default)/polishing surface/Hot-galvanized

† Operation voltage: AC220V (50Hz)/AC (110-240) (60Hz); Main-board voltage: DC 24V

† Control panel with count and LED digital function

† Control panel with alarm and sounds indication functions (optional)

† Transit speed: 20-30 persons per minute

† Work environment: Indoor/outdoor

† Temperature: -20 ℃ to 60 ℃

† Emergency and Traffic-light function



Half High Turnstile Functions:

† Reposition automatically

† Bi-direction passing

† The arms always be at the closing state

† The gate turns 90°at a time

† Input Interface: Dry Contact Digital Signal

† Three passing modes for both in or out:

- Free in & out (without locked);

- Limited in & out (controlled by access control system);

- Forbidden in & out (locked & without control by the access control system).

If no passage is completed, the release will be cancelled after an adjustable time.

† Optiaonal LED direction indicator

† Optional indication of inside counter or outside counter

† With interface of switch, compatible with all the access controller



Standard Accessories and Optional Extras:

† Alternative materials, finishes and custom design

- Top material can be supplied to suit customer requirements

- Finish and color optional

† Access control system integration (Refer to our access control system of C-L2000 or C-T2000)

- Integration of customer supplied readers inside

- Card reader pedestals

† Ticket system integration

† Status lights:

- LED display status lights flush mounted within the turnstile top, top face.
- The green badge symbol is continuously illuminated indicating passage is available.

- Upon authorization a green arrow will illuminate in the direction of passage authorization while in the opposite direction a red cross symbol will illuminate to indicate the unit is not available for use or is already in use.

† Push button control

- Simple remote push button by wireless console

- Single push-button casework or top mounted

- Remote console to specific requirements

† Usage counters

- Electro-mechanical, re-settable or non-re-settable counters outside

† Mechanical operation

- Non-electrical unit allowing free movement in one direction - reverse direction locked



Applications:

† Office building

† Government

† Hotel

† Super market

† Bank

† Park
