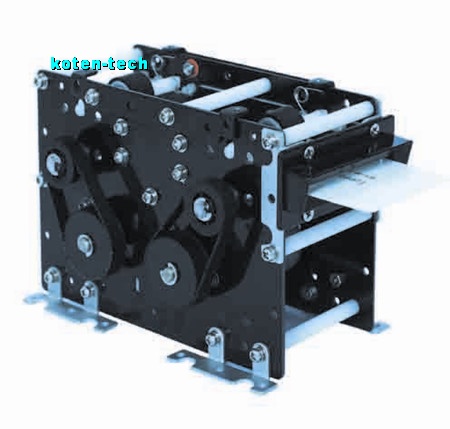

Product name : Automatic Card Recycling Mechanism/card collector
Item : TCR615
Details :

TCR-615 series card collectors are designed and produced on industrial standard. It is mainly used for toll system of car parks, and also widely used for access barriers system.  It reserved the reader antenna installation location, with options to quit cards and callback cards automatically if overtime.

1.1 Specification

l  Industrial design, good resistance to abrasion and corrosionfit for high and low temperature environments

l  Directly connect to the inductance signal to achievement cards’ collection when car is coming

l  The function of preventing a mistake to collect when followed card: insert the second card when collector don’t finish the first one , the machine can collect the card one by one

l  Provide RS232/RS485 or I / O voltage two control interfaces

Die-wide production ensure the products’ quality and

2、Features:
Operating voltage24VDC(Max current 2A, static current0.1A)
Operating temperature   -30℃-85℃
Operating relative humidity     30—90%
Used condition     install in bin
Card collecting speed  about 2s
Card materialpaper or polyester cards
