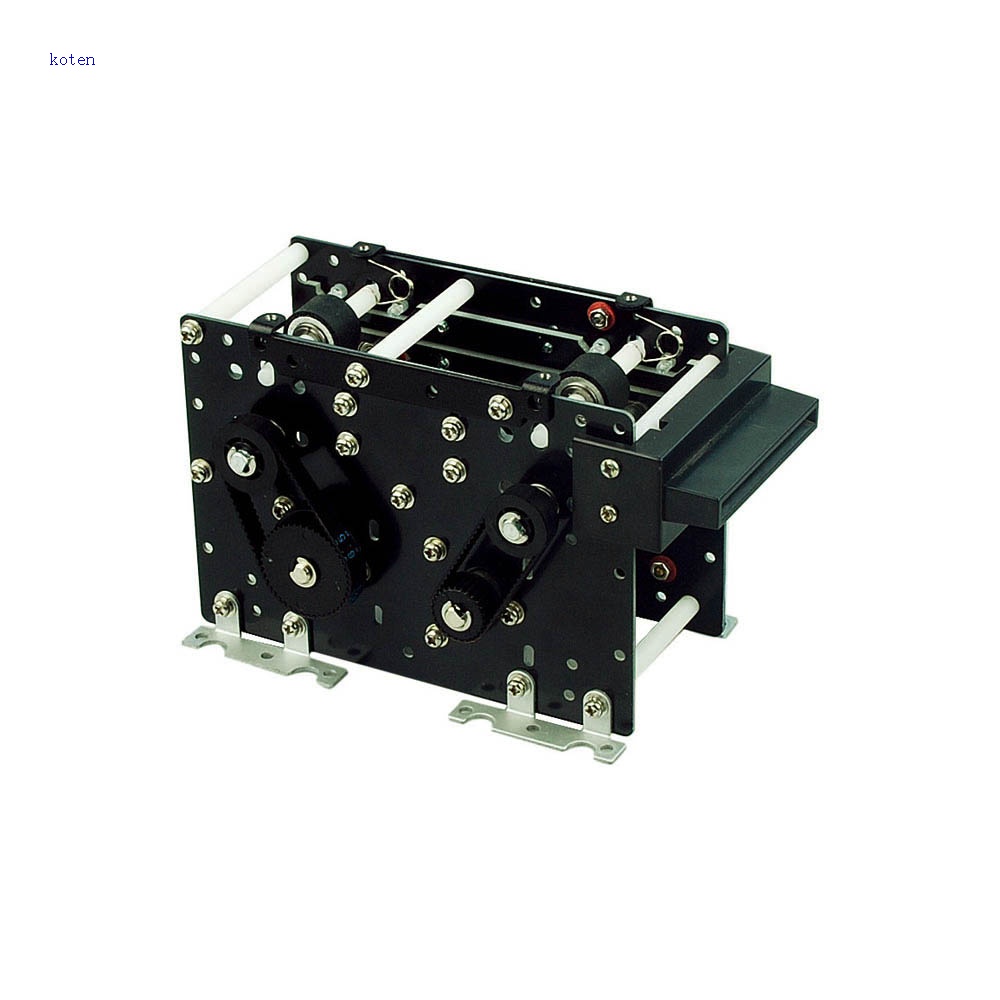

Specification
l Industrial design, good resistance to abrasion and corrosion，fit for high and low temperature environments
l Directly connect to the inductance signal to achievement cards’ collection when car is coming
l Provide RS232/RS485 or I / O voltage two control interfaces
l Die-wide production ensure the products’ quality and consistency
1.1 Card Size Range
l Card Width: 53 – 58 mm
l Card Length: 76 – 86 mm
l Card Thickness: 0.2 – 1.0 mm (Adjustable) (Default is 0.8mm)
All kinds of paper cards and PVC / Mylar cards
|
Cartridge Type
|
Cartridge Size(mm)
L*W*H
|
Shape Size(mm)
L*W*H
|
Card capability
|
|
Max
card thickness 0.2mm
|
Min
card thickness 1.0mm
|
|
H
|
108×60×110
|
240×100×145
|
550
|
110
|
|
L
|
108×60×80
|
240×100×110
|
400
|
80
|
0.7Kg (Include block pressure card)
About 1.0s
1.6 Electrical Specifications
l Rating Voltage: 24V DC ±10%
l Current Consumption: Peak —1.8Amp
l Static Consumption: 0.1Amp
l Temperature: -40℃ to 85℃
l Relative humidity: 30%-90%
l Location: Within a suitable cabinet
