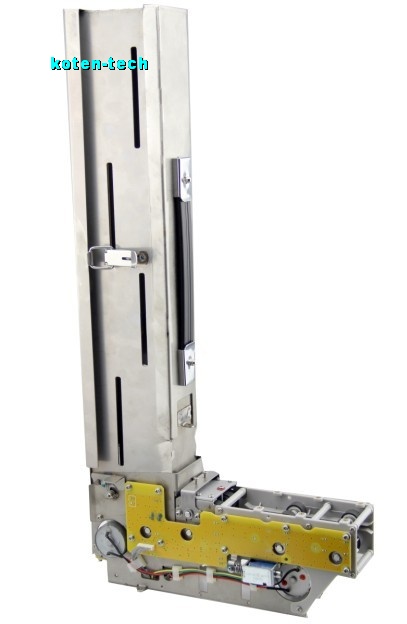

Motorised Barcode Card Dispenser

1. Main Characteristics  Industrial design, adjust to high temperature and other bad environments;  Simulated manpower friction card issuers ，better adaptability to various deformed cards;  Watchdog of hardware and embedded operating system to ensure properly running;  Pre-dispense function accelerate dispensing speed;  Connectable with the vehicle detector to achieve card issuing and “one car, one card”;  Automatic buzzer alarm when no cards, fewer cards or failure.  Provide both RS232 and I/O voltage control interface;  Automatic buzzer alarm when errors occur, automatic reset after 100 seconds alarm;  Capacity of card stacker is more than 40pcs, automatic buzzer alarm when the withdrawing stacker is full;  Slide card stacker with a capacity of 40pc;  Adjustable of card stacker with a capacity of 120pc each;  Automatic withdrawal to prevent card lost (only for KTCD800F series)  Slide design to make installation and disassembling easier;  Molded production to ensure high consistency of precision and quality. 2. Main technical data  Operating voltage: 24VDC (max current 2A, static current 0.1A)  Operating temperature: -30℃ to 85℃  Operating humidity: 30-90% (comparatively)  Use condition: install in bin  Time of issuing: max0.5s  Card material: Paper or Polyester card  Thickness: 0.3-2.4mm (adjustable) (Default: 0.8mm)  Capacity of stacker: 500pcs (0.8mm)
