1. Introduction

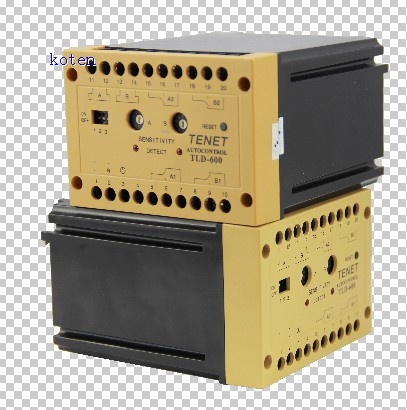

KTLD-600 is used for wherever vehicles have to be detected, for example for monitoring and safe-guarding access ways or for counting vehicles. The output signal can be used for controlling door drive mechanisms, operating barriers, activating card dispensers etc.
2. Technical parameters
﹡Type:KTLD-600(double channel)
﹡Operating temp.: -30℃ ~ +75℃
﹡Storage temp.: -40℃ ~ +85℃
﹡Relative humidity: ≤95%
﹡Shell: PC + ABS engineering plastics
﹡Installation: DIN rail
﹡Dimensions: 110×60×100 mm (L×W×H)
﹡Net Weight: 400g
﹡Operating voltages: AC220V±10%
﹡Power consumption:<5W
﹡Relay output:DC24V /3A
﹡Frequency range:20kHz ~ 170kHz
﹡Reaction time:10 ms
﹡Sensitivity:10 grades adjustable
﹡Loop inductance: Ideal 100µH~300µH Max 50µH~1000µH
﹡Loop conn. Wiring: Max 100m, twisted at least 20 times per meter, total resistance <10 Ohm
﹡Automatic calibration time:2s~5s
