Specifications:
Framework: 202/304/316 Grade Stainless Steel/Iron
Shell’ size: 2200*1450*2400mm (Standard)
Finish: Brushed surface (default)/polishing surface/Hot-galvanized
Operation voltage: AC220V (50Hz)/AC (110-240) (60Hz); Main-board voltage: DC 24V
Control panel with count and LED digital function
Control panel with alarm and sounds indication functions (optional)
Transit speed: 20-30 persons per minute
Work environment: Indoor/outdoor
Temperature: -20 ℃ to 60 ℃
Emergency and Traffic-light function

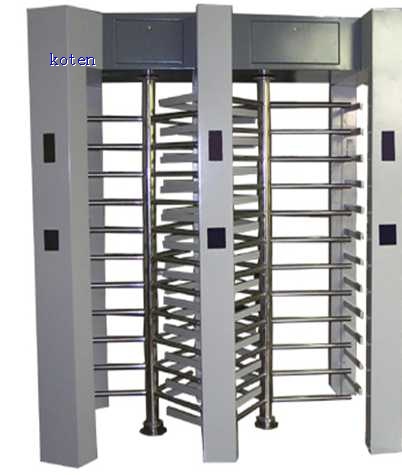

Full Height Turnstile Functions:
Reposition automatically
Bi-direction passing
The threes gates always being at the closing state
The gate turns 90°at a time
Input Interface: Dry Contact Digital Signal
Three passing modes for both in or out:
- Free in & out (without locked);
- Limited in & out (controlled by access control system);
- Forbidden in & out (locked & without control by the access control system).
Optical induction (intelligent):
- The low energy motor drive moves the turnstile column to next home position;
- The revolving speed is adjustable; a slight manual speed up is possible;
- If no passage is completed, the release will be cancelled after an adjustable time.
Two or one direction can be controlled and with LED direction indicator
Optional indication of inside counter or outside counter
With interface of switch, compatible with all the access controller
Standard Accessories and Optional Extras:
Alternative materials, finishes and custom design
- Top material can be supplied to suit customer requirements
- Finish and color optional
Access control system integration (Refer to our access control system of C-L2000 or C-T2000)
- Integration of customer supplied readers inside
- Card reader pedestals
Ticket system integration
Status lights:
- LED display status lights flush mounted within the turnstile top, top face.
- The green badge symbol is continuously illuminated indicating passage is available.
- Upon authorization a green arrow will illuminate in the direction of passage authorization while in the opposite direction a red cross symbol will illuminate to indicate the unit is not available for use or is already in use.
Push button control
- Simple remote push button by wireless console
- Single push-button casework or top mounted
- Remote console to specific requirements
Usage counters
- Electro-mechanical, re-settable or non-re-settable counters outside
Mechanical operation
- Non-electrical unit allowing free movement in one direction - reverse direction locked
Applications:
Office building
Government
Hotel
Super market
Bank
Park
