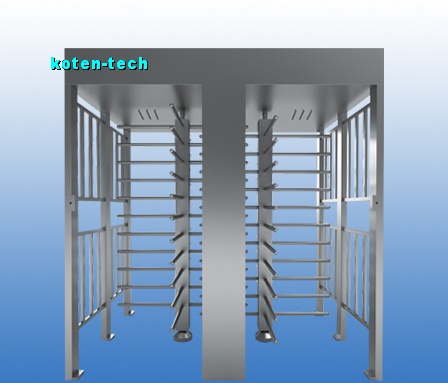

Full Height Turnstile

Specifications:

† Framework: 202/304/316 Grade Stainless Steel/Iron

† Shell’ size: 2600*1350*2200mm (Standard)

† Finish: Brushed surface (default)/polishing surface/Hot-galvanized

† Operation voltage: AC220V (50Hz)/AC (110-240) (60Hz); Main-board voltage: DC 24V

† Control panel with count and LED digital function

† Control panel with alarm and sounds indication functions (optional)

† Transit speed: 20-30 persons per minute

† Work environment: Indoor/outdoor

† Temperature: -20 ℃ to 60 ℃

† Emergency and Traffic-light function



Full Height Turnstile Functions:

† Reposition automatically

† Bi-direction passing

† The threes gates always being at the closing state

† The gate turns 90°at a time

† Input Interface: Dry Contact Digital Signal

† Three passing modes for both in or out:

- Free in & out (without locked);

- Limited in & out (controlled by access control system);

- Forbidden in & out (locked & without control by the access control system).

† Optical induction (intelligent):

- The low energy motor drive moves the turnstile column to next home position;

- The revolving speed is adjustable; a slight manual speed up is possible;

- If no passage is completed, the release will be cancelled after an adjustable time.

† Two or one direction can be controlled and with LED direction indicator

† Optional indication of inside counter or outside counter

† With interface of switch, compatible with all the access controller



Standard Accessories and Optional Extras:

† Alternative materials, finishes and custom design

- Top material can be supplied to suit customer requirements

- Finish and color optional

† Access control system integration

- Integration of customer supplied readers inside

- Card reader pedestals

† Ticket system integration

† Status lights:

- LED display status lights flush mounted within the turnstile right-side.
- The green badge symbol is continuously illuminated indicating passage is available.

- Upon authorization a green arrow will illuminate in the direction of passage authorization while in the opposite direction a red cross symbol will illuminate to indicate the unit is not available for use or is already in use.

† Push button control

- Simple remote push button by wireless console

- Single push-button casework

- Remote console to specific requirements

† Usage counters

- Electro-mechanical, re-settable or non-re-settable counters outside

† Mechanical operation

- Non-electrical unit allowing free movement in one direction - reverse direction locked



Applications:

† Office building

† Government

† Hotel

† Super market

† Bank

† Park
