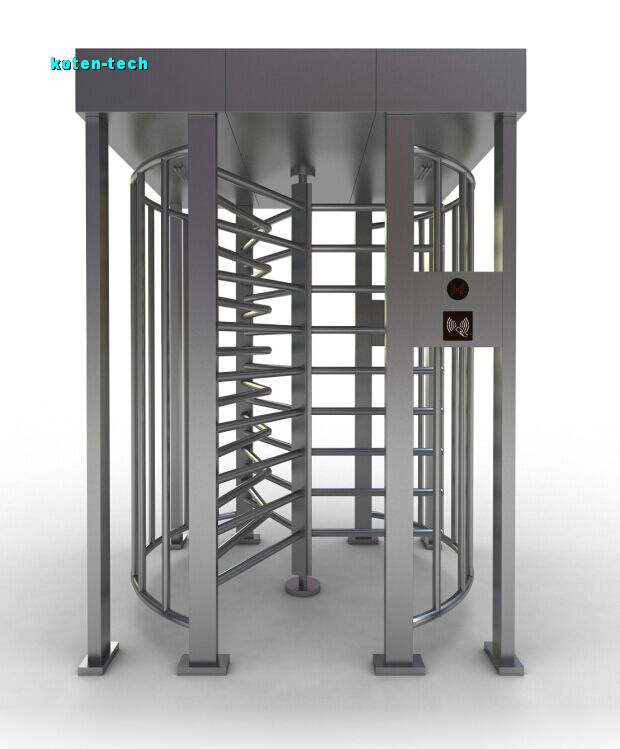

Full Height Turnstile

Product Descriptons: ◆ Full Height Turnstile developed by Koten is available for any area which needs a high level of security without persons to monitor. ◆ The machine is well designed to be rustproof, durable and able to resist external destroy. ◆ Full Height Turnstile is normally designed to be Semi-Automatic Type，Mechanical type. ◆ Full Height Turnstile with 3-arm obstacle: the center rotor rotates 120 degrees per time, and it offers a comfortable space for users. ◆ Full Height Turnstile with 4-arm obstacle: the center rotor rotates 90 degrees per time, and it offers a higher level of security but less space for users. Semi-Automatic Type: ◆ The center rotor will be set free (default) or locked (optional) automatically when the power is off. ◆ Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote-controlled whether the power is on or not. ◆ The structure has no motor. Manual Type: ◆ The center rotor can only rotate by single direction, but the direction can be changed easily inside. ◆ The structure has no electric devices. Function Specifications: ◆ Both directions can be set as controlled mode or free mode. ◆ NO mode & NC mode can be switched over by users easily & freely. ◆ Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software). ◆ With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers. ◆ Each machine can be set by Physical Address (Optional). Framework Specifications: ◆ Framework: 304 (Standard) / 316 grade stainless steel ◆ Thickness of Ply: 1.5mm (Standard) / 2.0mm ◆ Finishing: Brushed surface (Standard) / Polishing surface ◆ Arm Length: 610mm(Standard) 500~700mm ◆ Arm Diameter: 38mm (Standard) / 48mm ◆ Max Tolerance of Arm: 30kg ◆ Driving Force of Arm: 3kg Electric Specifications: ◆ Power Voltage: AC220V 50Hz(Standard) / AC85~240V 50or60Hz ◆ Operation Voltage: DC24V ◆ Operation Current: 3A / 5A (Max) ◆ Driving Motor: Brush DC motor ◆ Communication Interface: RS485 / RS232;  ◆ Control I/O: Relay Out / Level Input ◆ Transit Speed: 20~35 passage / minute ◆ Temperature: -20℃~60℃ ◆ Work Environment: Indoor/ Outdoor (Shelter) ◆ Traffic-light Indication Customized Features: ◆ Alternative Materials, Finishes and Custom Design ◆ Access control System Integration ◆ Ticket System Integration ◆ Camera System Integration ◆ Thermostat System Integration ◆ Remote-Controlled Button ◆ Usage Counters ◆ Waterproof and Dustproof Design: IP55 for mechanical module, IP65 for electric module Applications: ◆ Prison ◆ Office building ◆ Government ◆ School ◆ Hotel ◆ Super market ◆ Bank ◆ Park
